Valves Unlimited

Valve equipment to build your self

Please Click the Diagram you would like to view.

These are diagrams of valve amps, some I've built, some I've not...Some are mine, others have been found in the internet, and I just put them on here, for anyone who wants to make something. .

Valve Amp Diagram

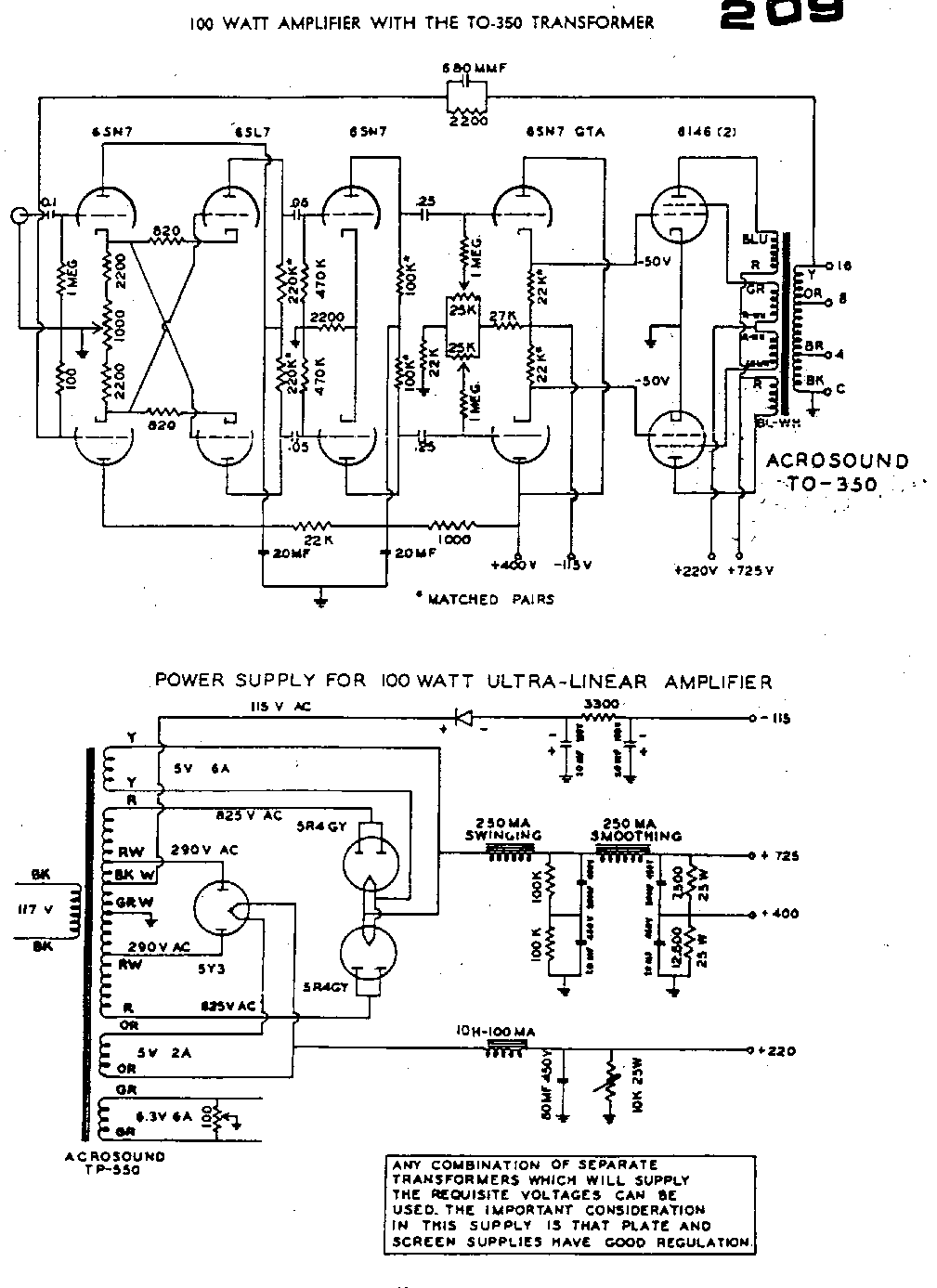

100 Watt Push-pull Valve Amp

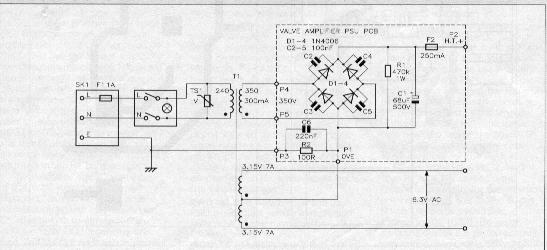

PSU for Valve Amp

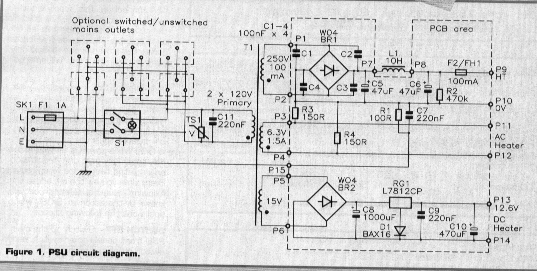

PSU For Pre-Amp

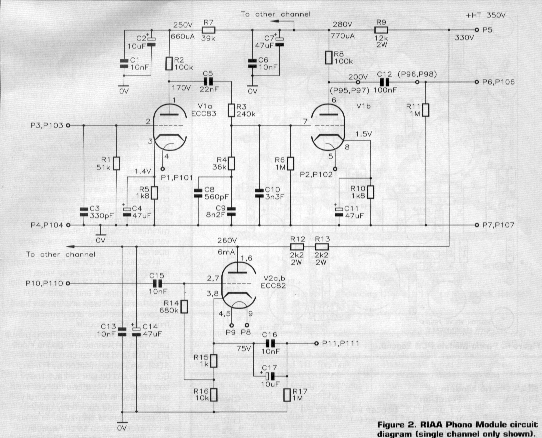

Phono Stage

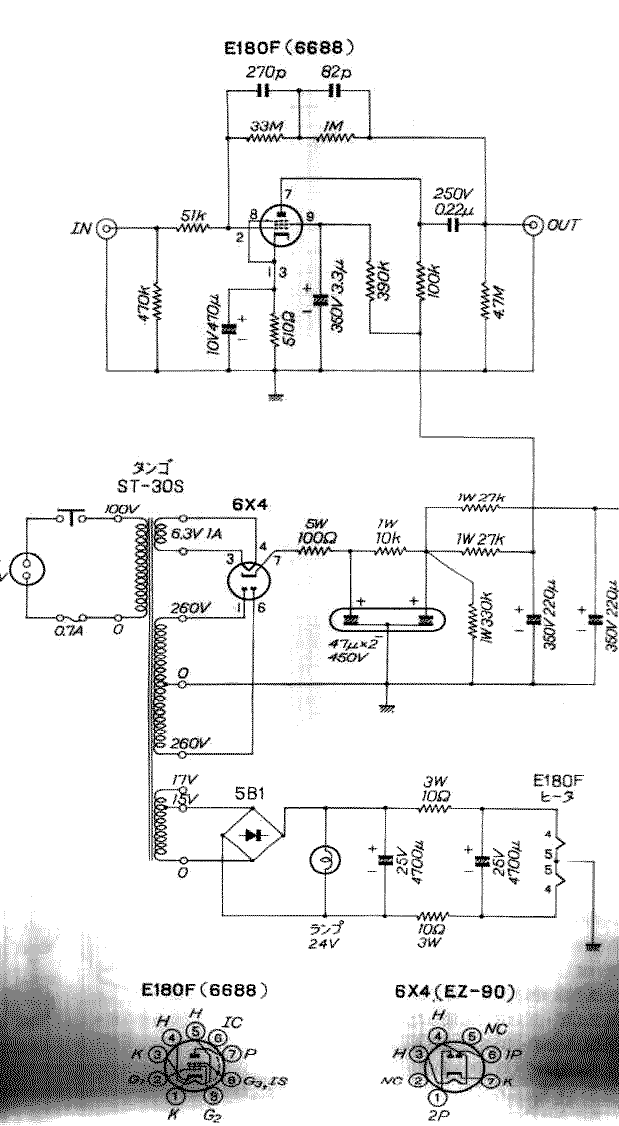

Another RIAA Phono stage

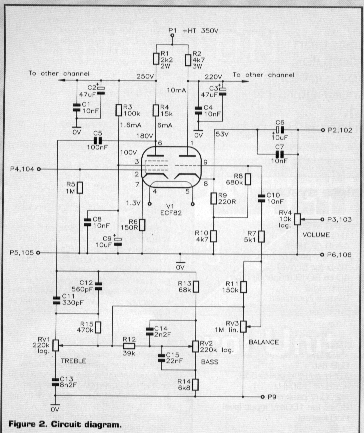

Tone Controls

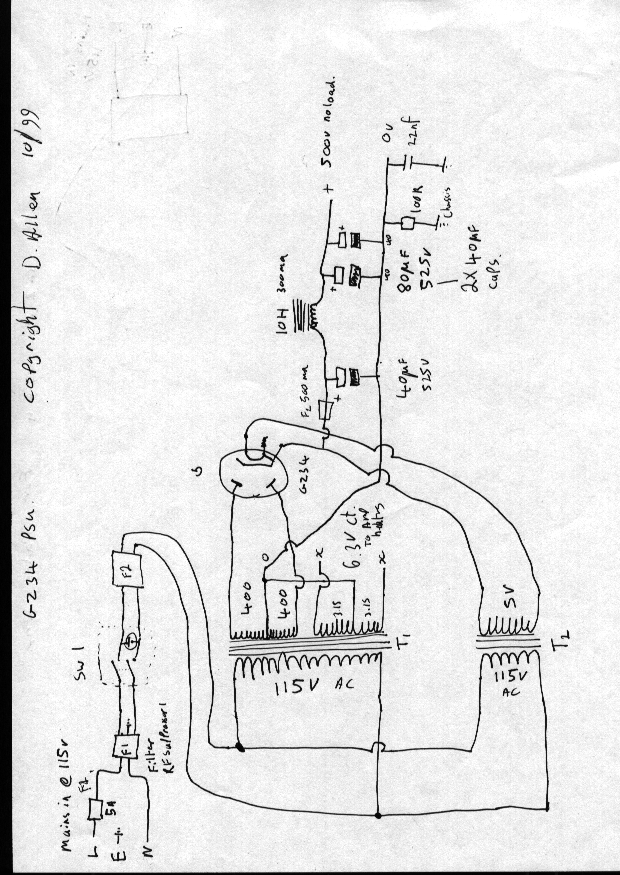

GZ34 PSU for valve amp
